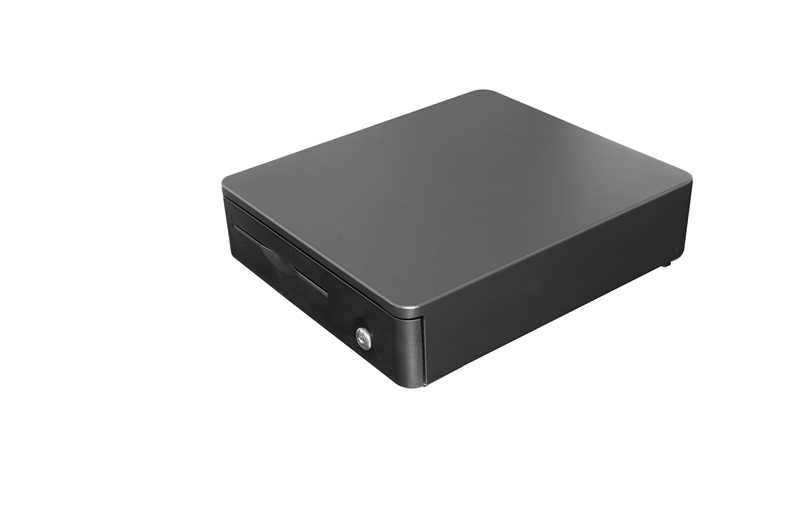

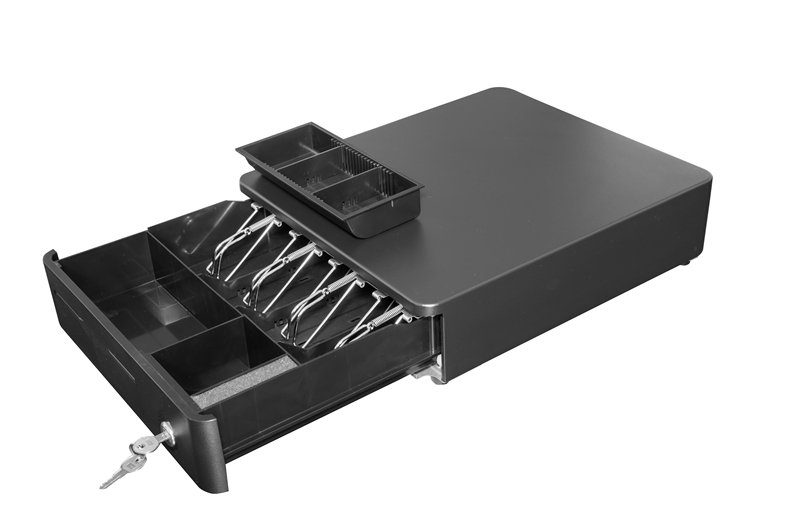

JY-335D
Technical Parameter：
| Model | JY-335D (Round corner) | Adjustable Width of Bill Tray | 4-bill/Left to right 79, 72, 72, 65mm |
| Housing Material | Galvanized steel sheet + high temperature baking paint | Bill Tray Length | 162mm |
| Till Material | High-strength engineering ABS | Coin Tray | 3-coin (removable & adjustable) + 1-coin fixed |
| Dimensions | L380×W335×H90mm | Media Slot | Single slot |
| Packaging Dimensions | L455×W395×H145mm | Lock | 3-position lock |
| Colors | Pearl White/Black | Net Weight | 3.5KG |
| Driving Voltage | 12V (customized from 6V - 24V) | Gross Weight | 4.0KG |
| Interface | RJ11/RJ12 | Working life | over 1 million times |
