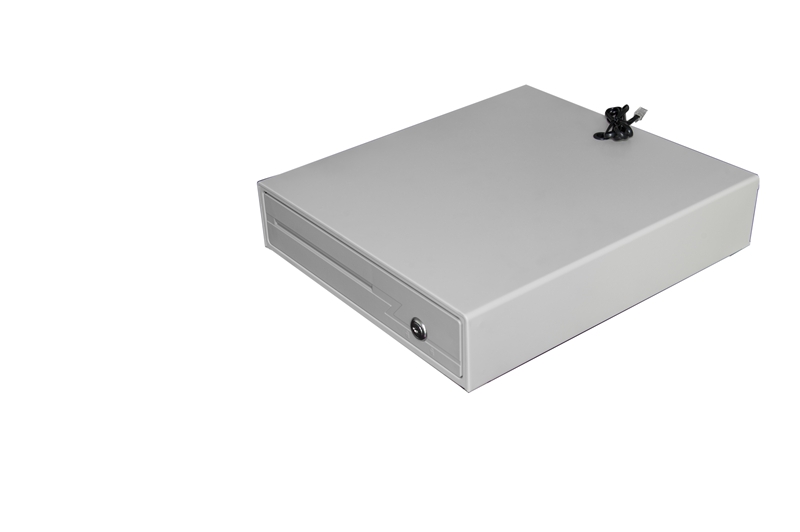

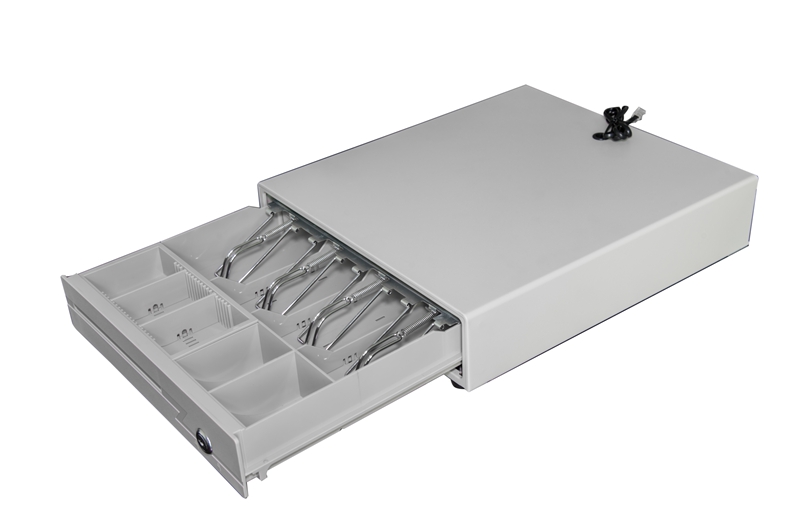

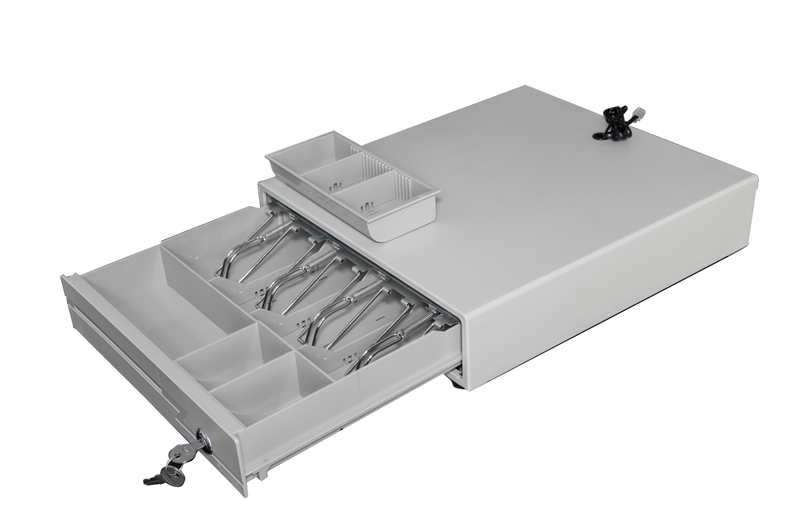

JY-335C

Technical Parameter:

Model JY-335C Adjustable   Width
    of Bill Tray
4-bill/Left to   right  79, 72, 72, 65mm
Housing Material Galvanized   steel sheet +
    high temperature baking paint
Bill Tray Length 162mm
Till Material High-strength   engineering ABS Coin Tray 3-coin   (removable & adjustable)
    + 2-coin fixed
Dimensions L380×W335×H80mm Media Slot Single slot
Packaging
    Dimensions
L455×W395×H145mm Lock 3-position lock
Colors Off-white/Pearl   White/Black Net Weight 3.4KG
Driving Voltage 12V (customized from   6V - 24V) Gross Weight 3.9KG
Interface RJ11/RJ12 Working life over 1 million times
